Screw Pumps

Get a Price/Quote

MOQ : 10 Units

Screw Pumps Specification

Control System
Manual / Automatic

Theory
Screw Pump (Positive Displacement)

Discharge Pressure
Up to 12 bar

Working Temperature
Up to 120C

Flow Rate
0.1 m/hr to 120 m/hr

Max Suction
Up to 8 Meters

Frequency
50 Hz/60 Hz

Inlet/Outlet
1 to 8 (BSP/NPT/DIN Flange)

Noise Level
<70 dB(A)

Voltage
220V/380V/415V

Head Size
Up to 120 meters

Mounting Type
Base Plate / Flange Mounted

Material
Cast Iron, Stainless Steel, Alloy Steel

Structure
Horizontal / Vertical

Power
0.55 kW to 55 kW

Standard
ISO 5199, API 676

Fuel Type
Electric

Pressure
Up to 12 Bar

Usage
Industrial, Chemical, Food Processing, Wastewater

Application
Effluent Transfer, Sludge, Oil, Chemical, Food

Suction Type
Positive Suction (Flooded/Negative)

Seals Type
Mechanical Seal / Gland Packing

Pump Type
Single Screw/Multiple Screw

Capacity
0.1 to 120 m/hr

Screw Pumps Trade Information

Minimum Order Quantity
10 Units

Supply Ability
50 Units Per Day

Delivery Time
1 Days

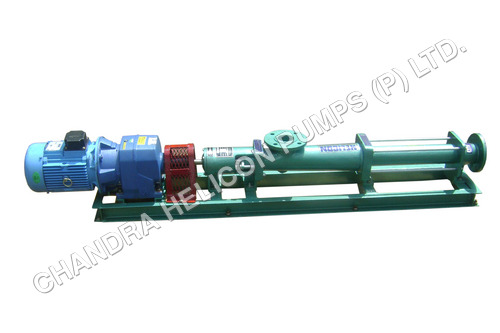

About Screw Pumps

Screw Pumps

We are renowned manufacturer,supplier & exporter of Screw Pumps based in Gujarat, India. Our Screw Pumps are highly efficient, consume less power, noise free and widely appreciated by various industries for their features. This pump has positive displacement with self priming & non clogging capabilities. Our high quality Screw Pumps are made of using premium quality material for longer life. Our products can be customized as per user requirement.

Features:

Longer service life
Rugged design
Easy installation and operation

Technical Specifications

Capacity: Up to 100M3\hr
Pressure: Up to 24 Kg\cm2
Temperature: Up to 150 C
Viscosity: Up to 1,00,000 CST.

Benefits and Advantages:

High suction capability
High pressure developing capability
High Viscous fluid handled
No pressure loss at high speed
Can easily handle abrasive fluids and non-lubricating
Output is not affected by pressure change
Steady delivery at low flow condition
No vapour and air locked is formed
Wide choice in material construction

Applications of our Pumps:

Slurry pumps used for chemicals, mineral slurry, molasses, explosive slurry, clay and ceramic slurry, viscous oils, paints, turbid water, mud pumps etc..
Furnace oil pumps used for furnace oil, diesel, petrol kerosene, lubricants, stocks & oils, LSHS etc..
Dairy Pump used for milk products, ghee, maltose, sugar syrup, glucose medicine, vinegar and food products etc..
Barrel Pump used for decanting barrel, slums, pumps etc. without manual labor
Open Mouth Pump used for non-free flowing material like cream, grease, tooth paste, bulk drugs etc..
Macerator Pump used for municipal sewage water etc..
Chemical Pump used for alkalies, slurry, acids, abrasive, chemical solution corrosive etc..
Single Screw Pump popularly used trouble free and efficient transfer of molasses in sugar mils etc..
Multiport Pump used for petroleum fuel
Internal conveyor Pump used for non free flowing items

Our Range of Screw Pumps:

Industrial Screw Pumps
Single Screw Pump
Sanitary Screw Pump
High Pressure Screw Pump
Monoblock Screw Pump

Robust Design and Versatile Application

Screw pumps are engineered for resilience and adaptability. Their robust construction in cast iron, stainless steel, or alloy steel ensures long-lasting performance across diverse sectors. Whether the requirement is effluent transfer in wastewater plants, precise transfer in food processing, or chemical handling, these pumps provide reliable operation under varying pressures and temperatures.

Efficiency and Control Features

Equipped with advanced sealing technology and multiple mounting options, screw pumps offer secure and stable performance. The inclusion of manual and automatic control systems allows seamless integration into automated industrial environments, while noise emission remains notably low, making them suitable for noise-sensitive applications.

FAQs of Screw Pumps:

Q: How do screw pumps maintain efficient performance across varying industrial applications?

A: Screw pumps utilize a positive displacement mechanism, ensuring a consistent flow rate regardless of viscosity fluctuations. Their design enables them to handle effluent, sludge, oil, chemicals, and food products efficiently in industries such as processing, wastewater treatment, and chemical plants.

Q: What are the advantages of the sealing options in these screw pumps?

A: Mechanical seals and gland packing are offered to address diverse site requirements. Mechanical seals minimize leakage and enhance pump lifespan, while gland packing allows easy maintenanceboth contributing to secure and reliable operation in high-temperature or high-pressure environments.

Q: When is it beneficial to use a single screw pump versus a multiple screw pump?

A: Single screw pumps are ideal for handling viscous or abrasive liquids with moderate pressures, whereas multiple screw pumps are preferable in applications demanding higher flow rates and pressure consistency, such as oil transfer and complex chemical processing setups.

Q: Where can these screw pumps be installed for optimal operation?

A: Screw pumps are suitable for installation on base plates or flange mounts in horizontal or vertical configurations. Optimal placement depends on the process requirements, available space, and desired integration with existing control systems within industrial facilities.

Q: What process is employed to achieve the maximum suction capacity of up to 8 meters?

A: These pumps use positive suction techniques, either flooded or negative suction, along with precision-engineered screw mechanisms that enable them to lift fluids efficiently even from lower elevations or challenging sources.

Q: How does the control system enhance user experience and operational efficiency?

A: With options for manual and automatic control, users can select the most suitable system for their process. Automatic control links the pump to overall plant automation, reducing downtime and improving workflow efficiency, while manual control allows for straightforward, hands-on operation.
